ZZ Tapered Roller Bearings

Time：2020.05.26  Source：Roller Bearings Suppliers

Tapered roller bearings are separate bearings. The inner and outer rings of the bearings have tapered raceways. This type of bearing is divided into different structural types such as single-row, double-row and four-row tapered roller bearings according to the number of rollers installed. Single row tapered roller bearings can withstand radial loads and axial loads in one direction. When the bearing is subjected to a radial load, an axial component will be generated, so when another bearing that can withstand the axial force in the opposite direction is needed to balance it.

Introduction:

The tapered roller bearing refers to a radial thrust rolling bearing with tapered rollers. There are two kinds of small cone angle and large cone angle. The small cone angle mainly bears the combined radial and axial load mainly radial load, often used in dual, reverse installation, the inner and outer races can be installed separately, the radial and axial clearance can be adjusted during installation and use; The large cone angle mainly bears the combined axial and radial loads that are mainly axial loads. It is generally not used alone to withstand pure axial loads. It can be used to withstand pure radial loads when configured in pairs (relatively installed at the same end).

Definition:

The ability of single-row tapered roller bearings to bear axial load depends on the contact angle, that is, the outer ring raceway angle. The greater the angle, the greater the axial load capacity. Single-row tapered roller bearings are the most used in tapered roller bearings. In the front wheel hub of the car, small-size double-row tapered roller bearings are used. Four-row tapered roller bearings are used in heavy machinery such as large cold and hot rolling mills.

Classification:

A single row tapered roller bearing has an outer ring, an inner ring and a group of tapered rollers which is an inner ring assembly formed by a basket-shaped cage. The outer ring can be separated from the inner ring assembly. According to the ISO tapered roller bearing dimensions standard, any standard type of tapered roller bearing outer ring or inner ring assembly should be able to achieve internationality with the same type of outer ring or inner ring assembly exchange. That is, in addition to the outer dimensions and tolerances of the outer ring of the same model, the requirements of ISO492 (GB307) must be met, and the cone angle and cone diameter of the inner ring components must also comply with the relevant regulations for interchange.

Generally, the tapered angle of the outer ring raceway of a single row tapered roller bearing is between 10 ° and 19 °, which can simultaneously bear the combined action of axial load and radial load. The greater the cone angle, the greater the ability to withstand axial loads. Bearings with a large cone angle, the rear code is added with B, and the cone angle is between 25 ° ~ 29 °, which can bear a large axial load. In addition, single row tapered roller bearings can adjust the size of the clearance during installation.

The outer ring (or inner ring) of double row tapered roller bearings is a whole. The two inner rings (or outer rings) have small end faces close to each other, and there is a spacer in the middle. The clearance is adjusted by the thickness of the spacer. The thickness of the spacer can also be used to adjust the pre-interference of double-row tapered roller bearings.

Four-row tapered roller bearings. The performance of this type of bearing is basically the same as that of double-row tapered roller bearings, but it has a greater radial load than double-row tapered roller bearings and a slightly lower limit speed. It is mainly used for heavy machinery.

Multi-sealed double and four-row tapered roller bearings, ZWZ provides long-life, multi-sealed double and four-row tapered roller bearings. Personalized new design of the bearing, change the traditional design method of the fully sealed bearing, and adopt a new type of sealing structure that combines sealing and dustproof to improve the sealing effect and improve the sealing performance. Compared with open structure bearings, multi-sealed double and four-row tapered roller bearings have a 20% to 40% longer life; lubricant consumption is reduced by 80%.

Use:

Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity of the bearing depends on the raceway angle of the outer ring.

The greater the load capacity. This type of bearing is a separate bearing. It is divided into single-row, double-row and four-row tapered roller bearings according to the number of rows of rolling elements in the bearing. The clearance of single-row tapered roller bearings needs to be adjusted by the user during installation; the clearances of double-row and four-row tapered roller bearings have been given at the factory according to user requirements, and no user adjustment is required.

Tapered roller bearings have tapered inner ring and outer ring raceways, tapered rollers are arranged between the two. The projection lines of all conical surfaces converge at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for bearing compound (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact angle α; the larger the angle α, the higher the axial load capacity. The size of the angle is expressed by the calculation factor e; the greater the value of e, the greater the contact angle, the greater the applicability of the bearing to bear axial loads.

Tapered roller bearings are usually separated, that is, the tapered inner ring assembly consisting of the inner ring with roller and cage assembly can be installed separately from the tapered outer ring (outer ring).

Tapered roller bearings are widely used in automotive, rolling mill, mining, metallurgy, plastic machinery and other industries.

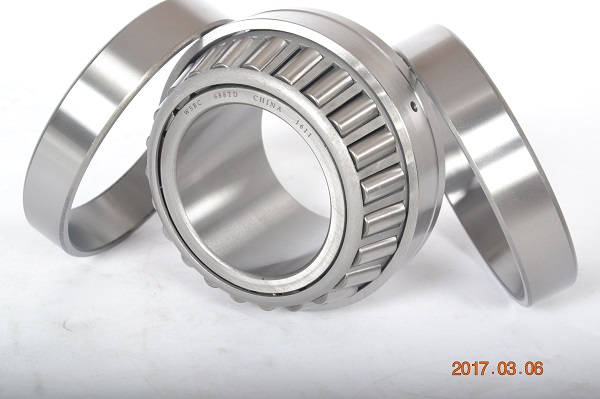

Today's model show: ZZ_688TD
