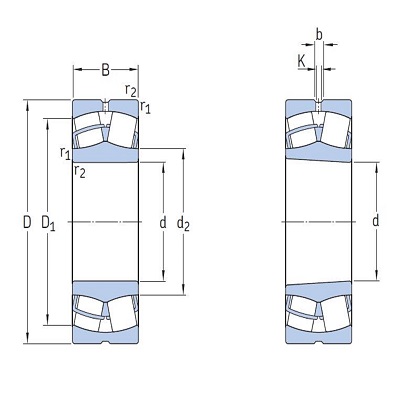

| Boundary dimensions (mm) |
Load ratings (KN) |
Limiting speeds (r/min) |
Mass (kg) |
Bearing NO. | ||||
| d | D | B | Cr | Cor | Grease | oil | ZZ | |
| 100 | 215 | 73 | 644.7 | 851 | 1900 | 2200 | 13.34 | 22320-E1A-MA-T41A |
MA type spherical roller bearing guided by outer ring , for example 22320-E1A-MA-T41A , detailed suffix meaning , E1 stands for enhanced
design , A means improved internal structure , MA means solid brass cage
, guided by outer ring , T41A means this type bearing suitable for
vibration loading, narrow diameter tolerance zone ,internal radial
clearance is C4 .MA type spherical roller bearing mainly used in mining
machine and vibration pressure equipment , such as vibrating screen,
road roller,sawtooth cutting machinery.
ZZ 22320-E1A-MA-T41A can replace to SKF , FAG , TIMKEN brand . High quality bearing with competitive price will help you save much factory production cost . We can guarantee promptly delivery and after sale service , if you have demand for ZZ 22320-E1A-MA-T41A bearing or want know more about bearings , pls do free to contact us .
