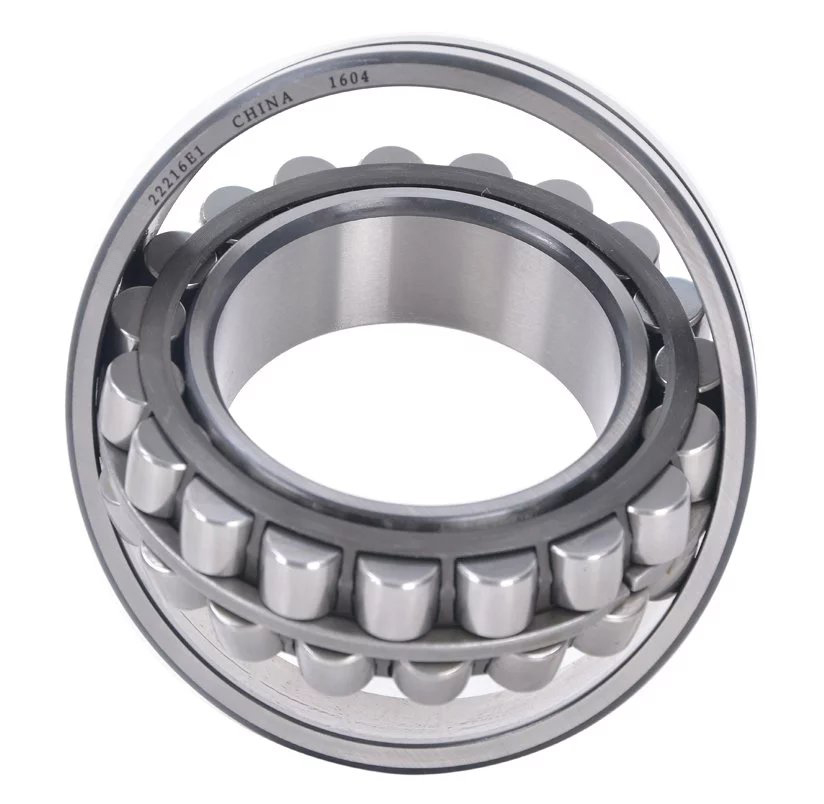

E1 type spherical roller bearings

Boundary dimensions (mm)			Load ratings (KN)		Limiting speeds (r/min)		Mass (kg)	Bearing NO.
d	D	B	Cr	Cor	Grease	oil	Mass (kg)	ZZ
25	52	18	48	42.5	17000	9200	0.175	22205-E1-K
25	52	18	48	42.5	17000	9200	0.18	22205-E1
30	62	20	64	57	13000	7800	0.269	22206-E1-K
30	62	20	64	57	13000	7800	0.275	22206-E1
35	72	23	88	81.5	11000	7000	0.425	22207-E1-K
35	72	23	88	81.5	11000	7000	0.434	22207-E1
40	80	23	101	91	10000	6200	0.517	22208-E1-K
40	80	23	101	91	10000	6200	0.528	22208-E1
40	90	23	109	107	9500	5200	0.701	21308-E1
40	90	23	109	107	9500	5200	0.702	21308-E1-K
40	90	33	156	149	7500	5500	1.03	22308-E1-K
40	90	33	156	149	7500	5500	1.05	22308-E1
45	85	23	104	99	10000	5600	0.577	22209-E1-K
45	85	23	104	99	10000	5600	0.589	22209-E1
45	100	25	129	130	8500	5500	0.845	21309-E1-K
45	100	25	129	130	8500	5500	0.845	21309-E1
45	100	36	187	183	6700	5000	1.36	22309-E1-K
45	100	36	187	183	6700	5000	1.39	22309-E1
50	90	23	109	107	9500	5100	0.608	22210-E1-K
50	90	23	109	107	9500	5100	0.622	22210-E1

E1 type spherical roller bearings and their application

E1 type spherical roller bearings have improved kinematics and optimised surfaces, are made from higher performance materials and do not have a rigid central rib. Without a cage suffix have sheet steel cages. The two cage halves are retained by a guidance ring in the outer or inner ring.

It can support axial forces in both directions and high radial forces. They are designed for very high load carrying capacity and, since they have the maximum possible number of large and particularly long barrel rollers, are also suitable for the heaviest loads. ZZ 22205-E1-K bearing are synchronous with world brand bearing ,which widely used in mining , petroleum, chemical,coal , cement , heavy machinery,wind power,and other industries .

Supplier of E1 type spherical roller bearings:

ZZ Bearing (Shanghai) Co., Ltd (Aka ZZ Bearings) is the complete, one-stop E1 type spherical roller bearings supplier & manufacturer. All products are qualified and have passed the ISO 9001 qualification. Here are some popular types of E1 type spherical roller bearings: 22205-E1-K, 22205-E1, 22206-E1-K, 22206-E1. Feel free to get a quote from us by filling the contact form below.
