Double row inch size tapered roller bearings-TDO Type

Double row inch size tapered roller bearings-TDO Type A4059/A4138D


  • Detail
  • Inquiry

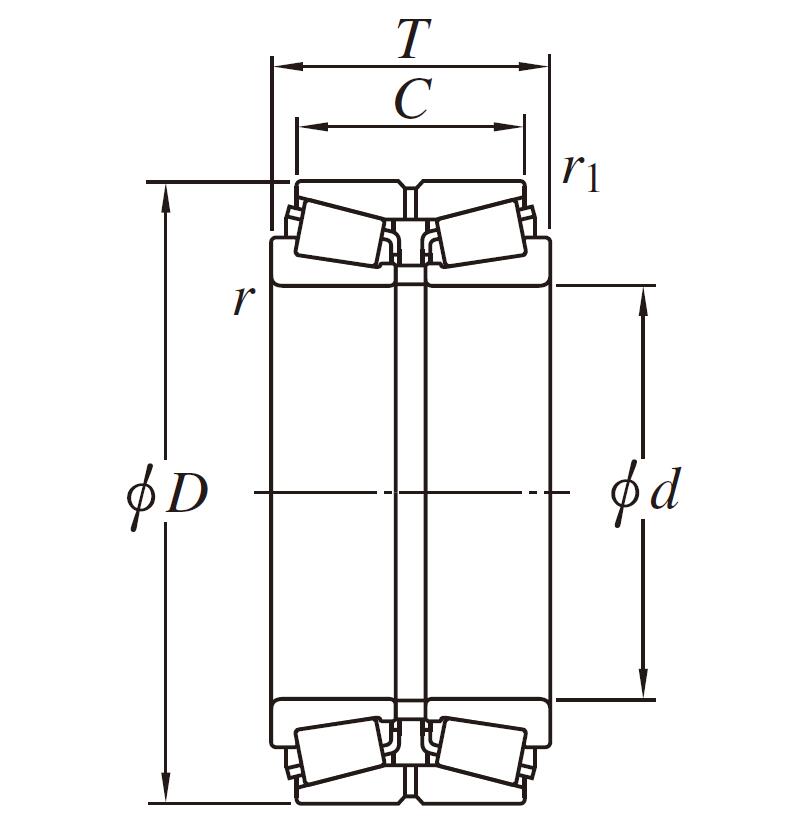

Boundary dimensions
(mm)
Mass
(kg)
Bearing NO.
d D T C ZZ
14.989 34.988 25.174 20.638 0.11 A4059/A4138D

This has a one-piece (double) outer ring and two single inner rings. It is usually supplied complete with an inner-ring spacer as a pre-set assembly. This configuration gives a wide effective bearing spread and is frequently chosen for applications where overturning moments are a significant load component. TDO bearings can be used in fixed (locating) positions or allowed to float in the housing bore, for example, to compensate for shaft expansion. TDO CD outer rings also are available in most sizes. These outer rings have holes in the O.D. that permit the use of pins to prevent outer ring rotation in the housing.ZZ A4059/A4138D is widely used in automotive,rolling mill,mining, metallurgy,plastics machinery and other industries. If you want to know more about ZZ A4059/A4138D , welcome you contact us freely .
