| Boundary dimensions (mm) |
Load ratings (KN) |
Limiting speeds (r/min) |
Mass (kg) |
Bearing NO. | ||||
| d | D | B | Cr | Cor | Grease | oil | ZZ | |
| 80 | 140 | 40 | 236 | 270 | 1200 | - | 2.4 | BS2-2216-2CS |

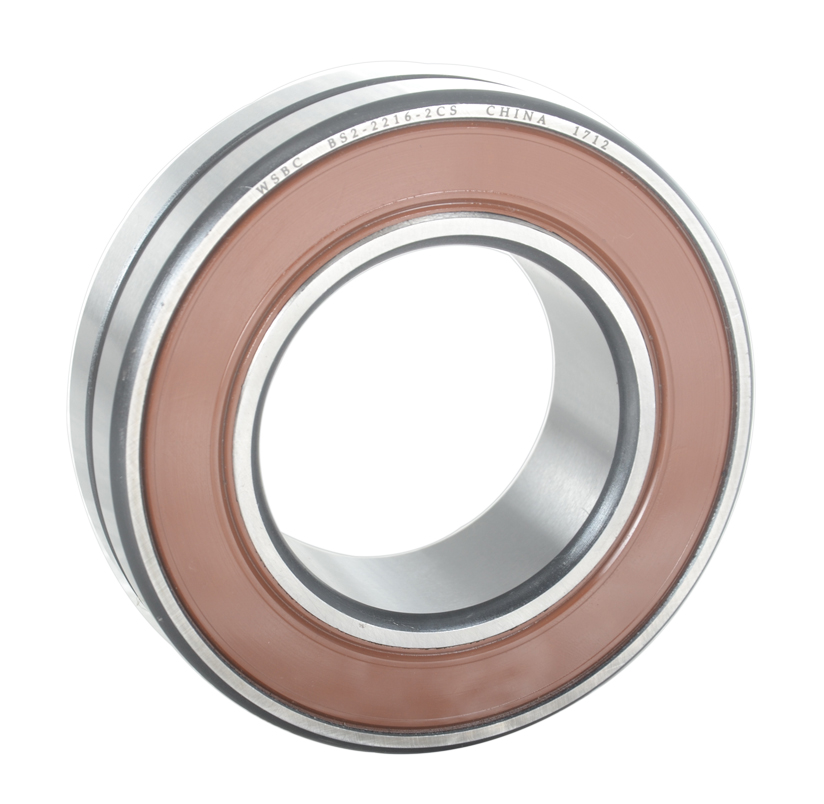

BS2 type Sealed spherical roller bearing with two rows of rollers,the
features is the bearings with extended width , BS2-2216-2CS, the prefix BS2 means the dimension series, 2CS=2RS means
NBR seal. Besides,we can also provide HNBR seal, FKM seal.
Our BS2-2216-2CS bearing design structure is the same as SKF
BS2-2216-2RS/VT143, as per your requirement, we can change BS2-2216-2CS bearing seals and structure and Lubricant filling to Customization
production.
Enough stock for ZZ BS2-2216-2CS bearing to ensure fast delivery, high quality and favourable price to help you save much cost. If you have inquiry or want know more about ZZ BS2-2216-2CS bearing, pls do free to contact me.
